Description

DC Motor Speed Controller 12V–48V | 20A PWM Module for High Power Motor Control

Take full control of your DC motor’s performance with this high-power PWM motor speed controller. Designed for robust applications, this speed regulator supports a wide voltage range (12V, 24V, 36V, 48V) and handles up to 20A of current, making it ideal for powerful motors and demanding environments.

🔧 Key Features:

• Wide Input Voltage: 9V to 60V DC – compatible with 12V, 24V, 36V, and 48V systems

• High Current Capacity: Supports up to 20A max current with continuous operation at 18A

• Precise Speed Control: Adjust motor speed from 0% to 100% using the included potentiometer

• PWM Output: Delivers linear voltage under load for stable and smooth motor operation

• Built-In Protection: Equipped with SEFUSE overload protection for safety and reliability

• Compact and Lightweight: Measures just 77mm x 45mm x 28mm and weighs only 80g

⚠️ Important Note:

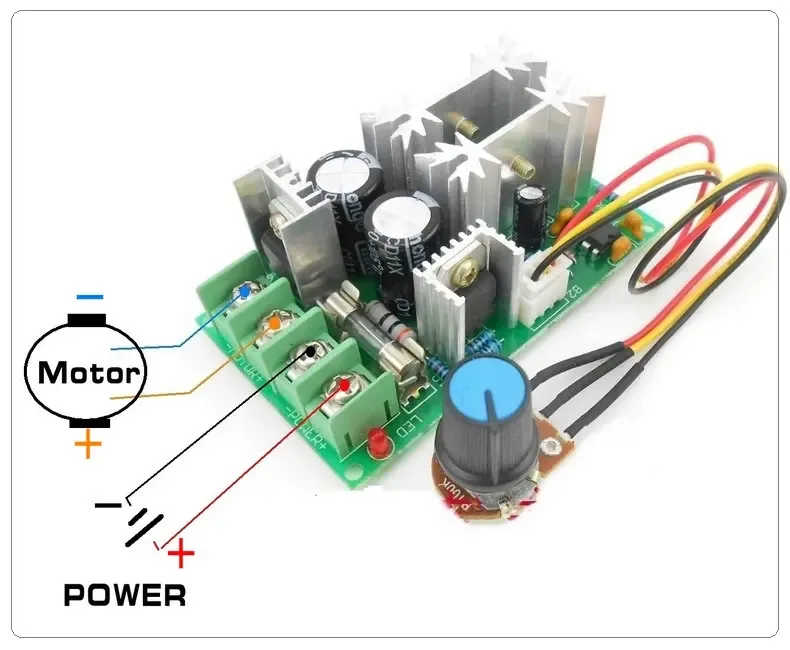

This controller must be connected to a load (such as a motor) during operation. Do not test without a connected load, as it may result in incorrect behavior or damage to the module.

Whether you’re upgrading your robotics project, enhancing an electric vehicle, or building industrial equipment, this PWM DC Motor Speed Controller delivers powerful performance and reliable control.
