Description

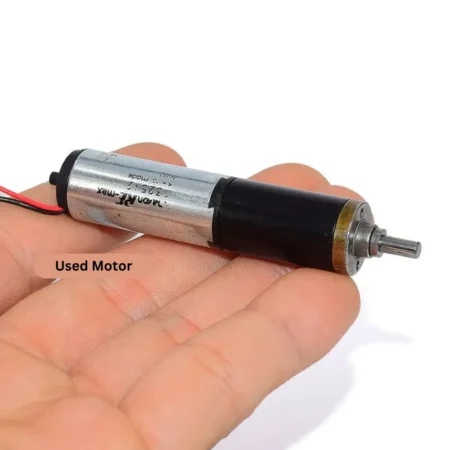

Maxon DC Motor

The Maxon DC Motor RE13 Micro 13mm Coreless Motor is a compact, high-performance gear motor designed for applications requiring precision, efficiency, and high torque in small spaces. Featuring a permanent magnet and planetary gearbox, this motor delivers reliable performance at 12V with a base speed of 102 RPM, making it ideal for low-speed, high-torque operations.

Key Features:

• Voltage: 12V DC
• No-Load Speed: 43-102 RPM
• Torque: 2kg.cm @ 12V DC
• Current: 7mA-12mA (no-load)
• Gear Ratio: 67.5:1 for an optimal balance between torque and speed

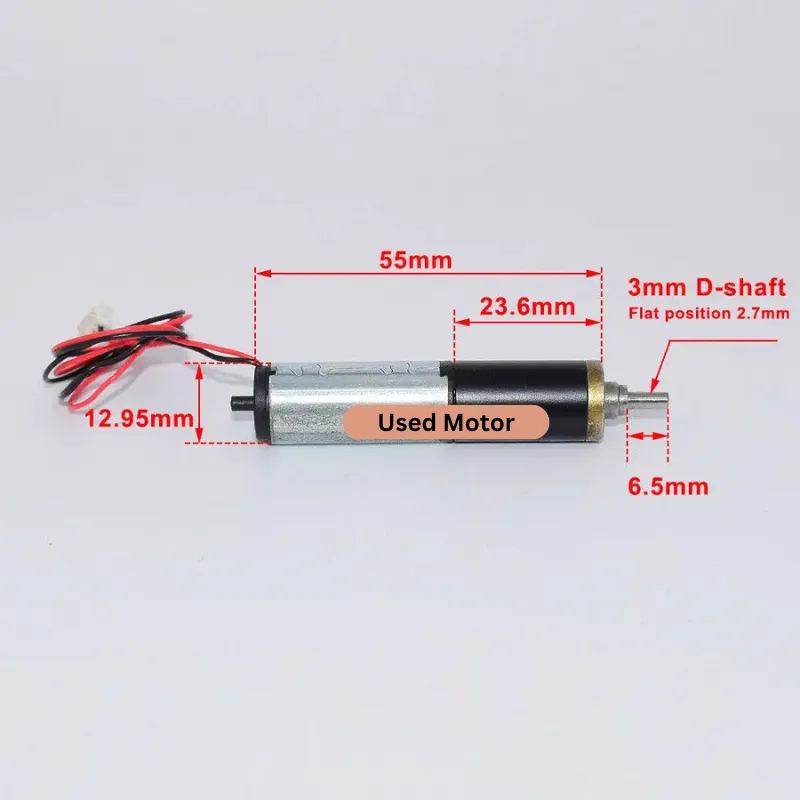

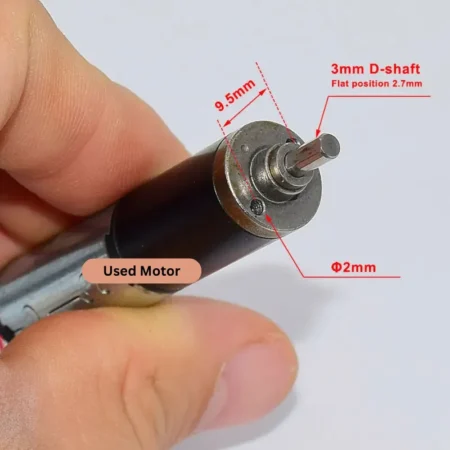

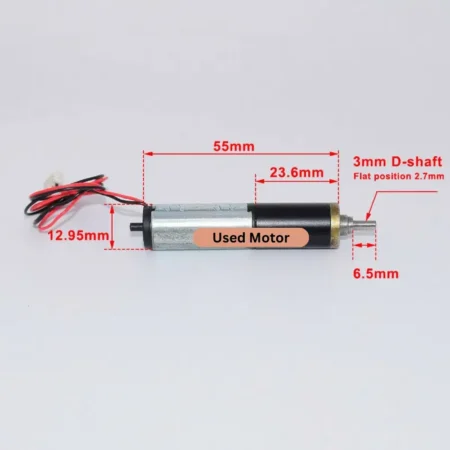

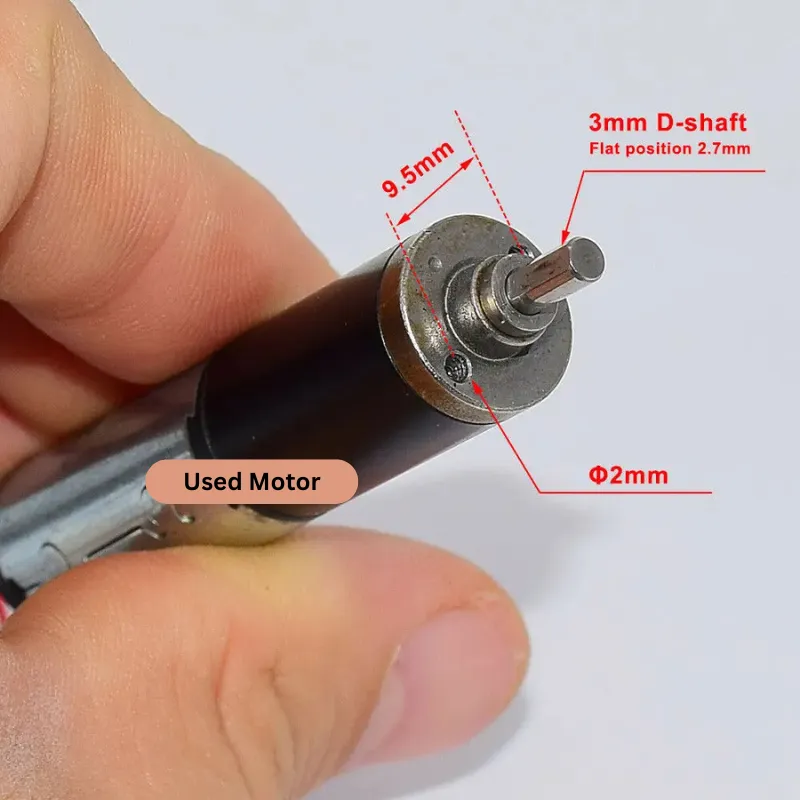

• Shaft Diameter: 3mm (Flat 2.7mm)
• Construction: Permanent magnet with a drip-proof design for durability
• Commutation: Brush system for smooth operation
• Reversible: Supports both forward and reverse rotation

Applications: Ideal for use in robotics, precision instruments, and any project requiring a compact, high-torque motor.

Condition: Used, but in excellent working condition, taken from a machine. Weighing just 40g, this motor offers efficient operation (IE 1 rated) and a versatile design for various projects.

Choose the Maxon RE13 DC Motor for your high-torque, low-RPM requirements.
